MODEL DESCRIPTION: EssenAsansor MRL-N

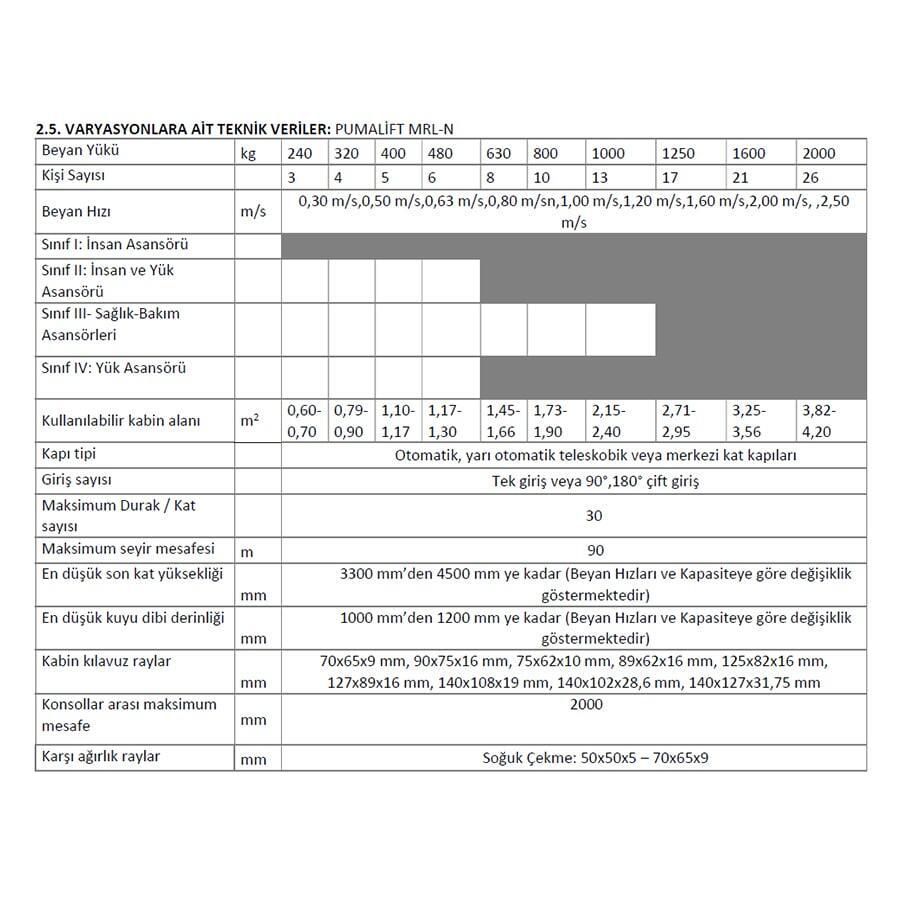

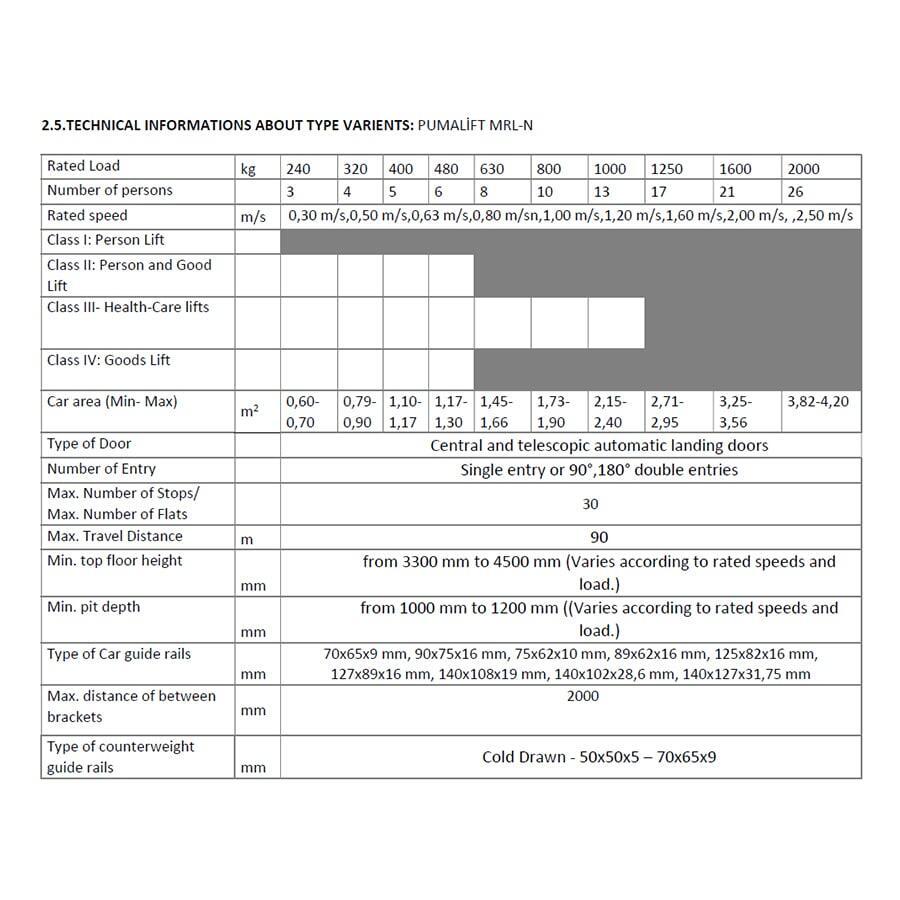

VARIATIONS OF THE TYPE:
EssenAsansor MRL-N 0240
EssenAsansor MRL-N 0320
EssenAsansor MRL-N 0400
EssenAsansor MRL-N 0480
EssenAsansor MRL-N 0630
EssenAsansor MRL-N 0800
EssenAsansor MRL-N 1000
EssenAsansor  MRL-N 1250
EssenAsansor  MRL-N 1600
EssenAsansor  MRL-N 2000

PRODUCT USAGE AREA SPECIFICATIONS:
General use buildings, residences, business centers, hospitals and public buildings.
Complies with TS EN 81-20:2020, TS EN 81-50:2020 standards.

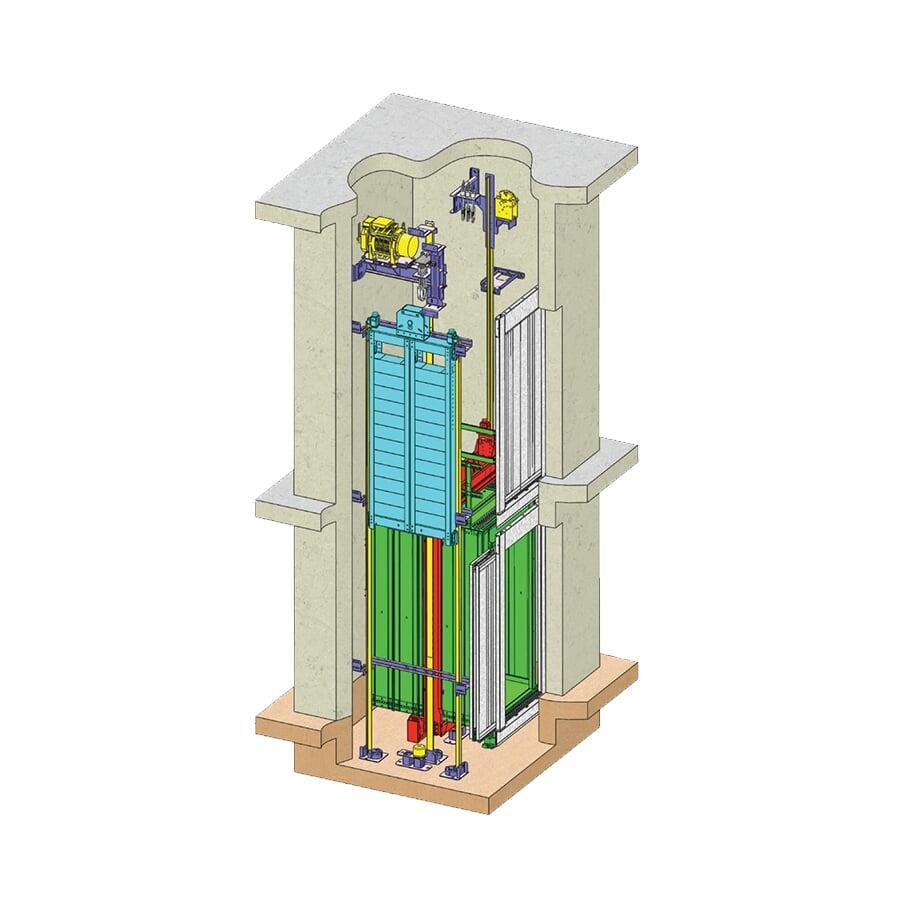

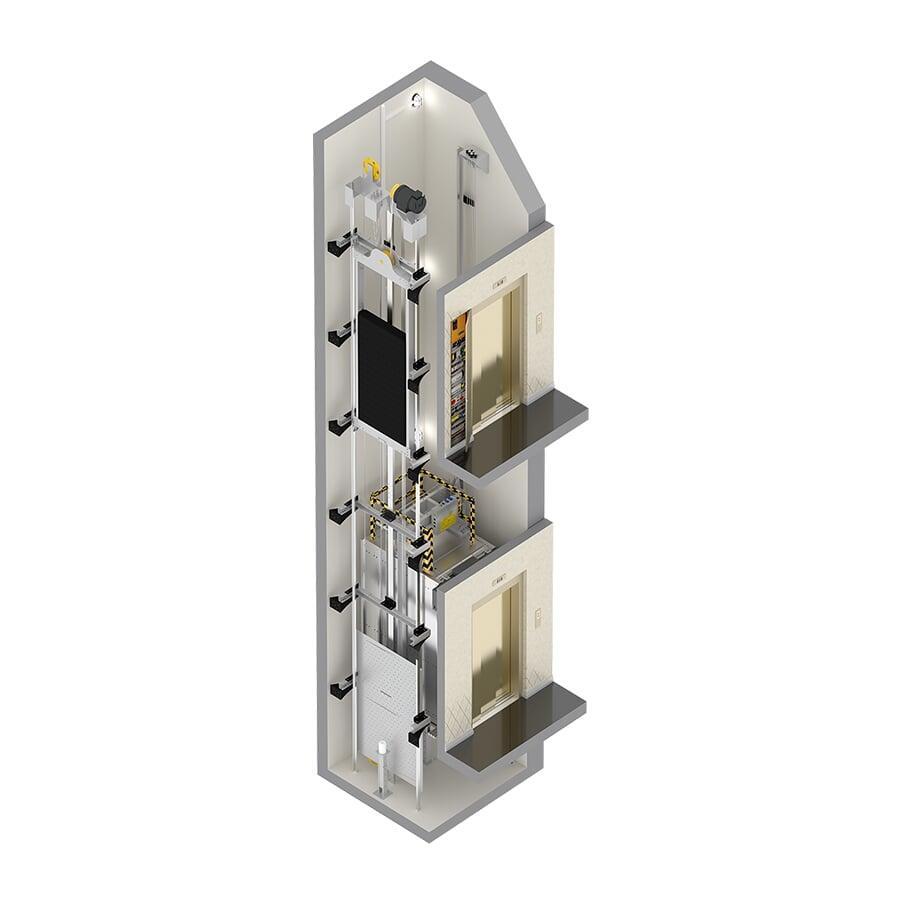

MACHINE CAVITY LOCATION: Inside the well.

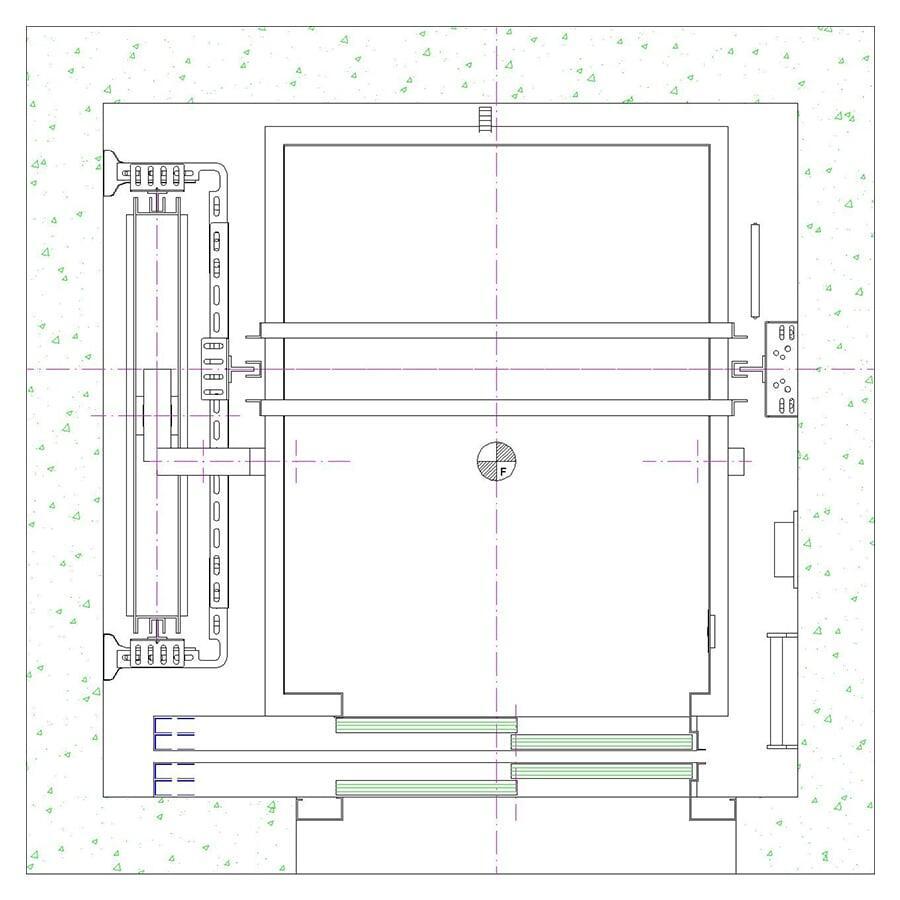

WELL SPECIFICATIONS: Concrete-walled well or steel-structured well.

MACHINE INSPECTION AND MAINTENANCE CONDITIONS:
When the machine is located inside the well, machine maintenance and inspection procedures are performed from above the cabin;
a rail-mounted cabin movement prevention device is used during maintenance. Normal installation, maintenance, and inspection conditions are provided within the machine room
